Hop Back, Hop Cannon &Yeast Brinks

Manufacturer of high-quality complete craft beer brewing equipment

Product Brief Introduction

Certified stainless steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish.

Standard product features

HOP BACK STANDARD FEATURES	Inoxpa butterfly valves
	Clamps and gaskets, pressure gauge
	Solid End Cap 1.5”
	Removable infusion basket
	Bottom Drain Outlet
HOP CANNON STANDARD FEATURES	SUS304 hop cannon.
	1.5″ tri-clamp connections.
	Internal perforated candle stick filter.
	2″ tri-clamp drain outlet.
	4 tangential vessel inlets.
	Pressure gauge/purge point.
	Pressure rating: 2bar.
	Pressure safety release valve (to ground)
	Fully mobile on 3/4 castors.

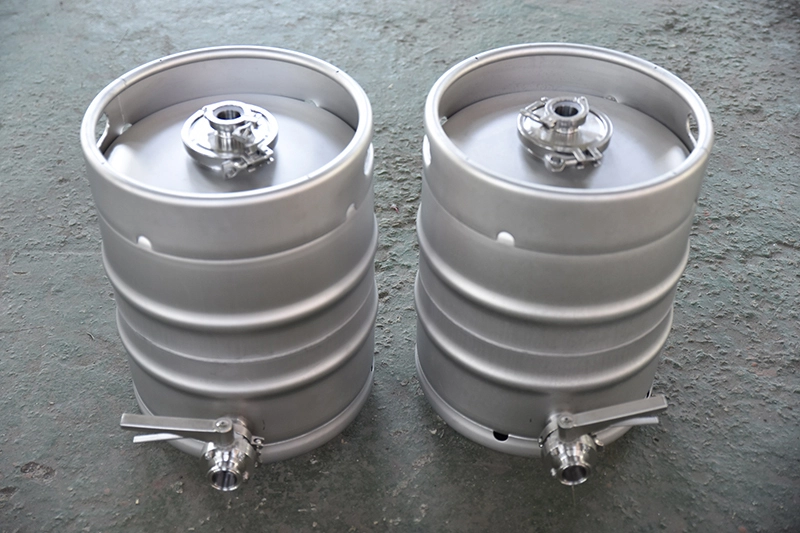

YEAST BRINK STANDARD FEATURES	Keg with 4” Top Ferrule
	Inoxpa butterfly valves
	SS 50MM Total Lock Caster w/Poly Wheel
	Clamps and gaskets
	4” Top Tri-Clamp Port with CIP Spray Ball Assembly
	Solid End Cap 1.5” TC
	1.5” Pressure Relief Valve
	1/2” Hose Barb X 1.5” Tri-Clamp
	2” Bottom Drain with fittings
