NO.

Name

Specification

Qty

1

Liquefier tank

1.Material:SS304;

2.Wigh high shear agitator, variable mixing speed with VFD;

3.Single wall, thickness:3mm;

4.Working volume:250Gallon, total volume: 325volume;

5.With pressure sensor;

6. CIP arm and 360 degree CIP spray ball;

7. With all the necessary fittings;

1

2

Raw Batch tank

1.Material:SS304;

2.Working volume:5000Gallon；

3.With mixing agitator, 4kw,variable mixing speed by VFD;

4.Single wall,thickness:4mm;

5.With pressure sensor and low level switch;

6.CIP arm and 360 degree CIP spray ball group;

7.With all the necessary fittings;

2

3

Finished batch

tank

1.Material:SS304;

2.Working volume:5000Gallon;

3.With mixing agitator, 3kw,variable mixing speed by VFD;

4.Single wall,thickness:4mm;

5.With pressure sensor and low level switch;

6.CIP arm and 360 degree CIP spray ball group;

7.With all the necessary fittings;

2

4

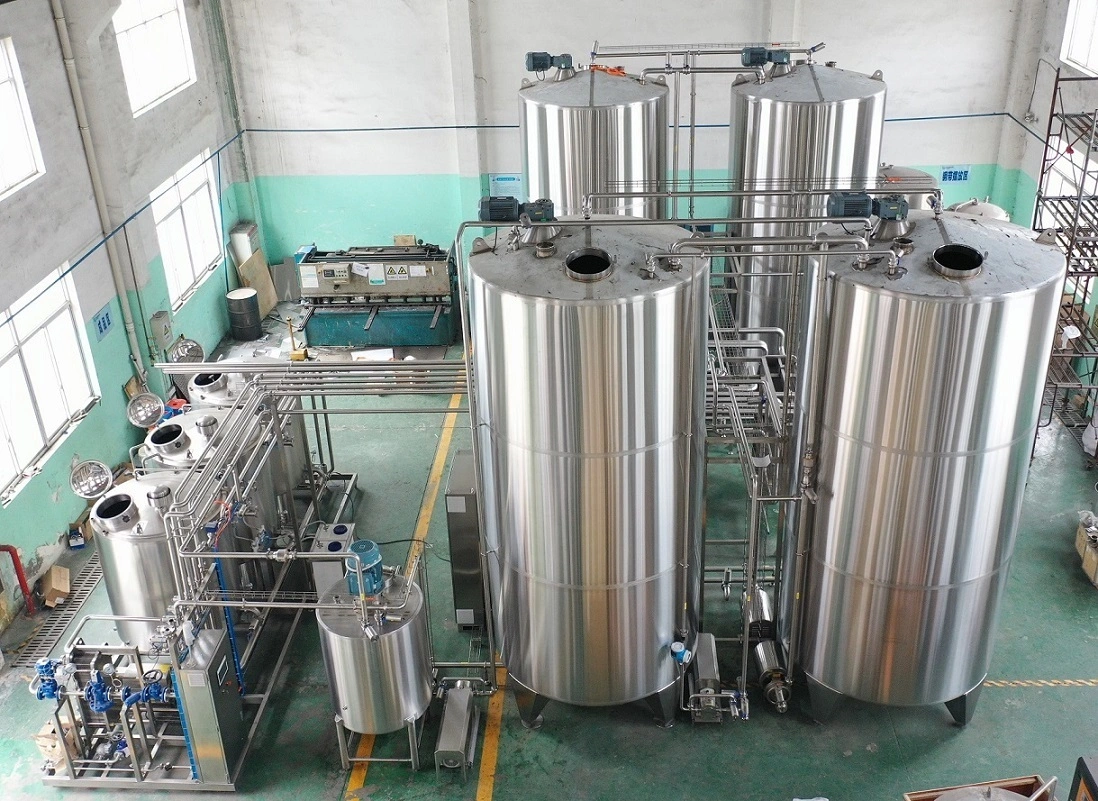

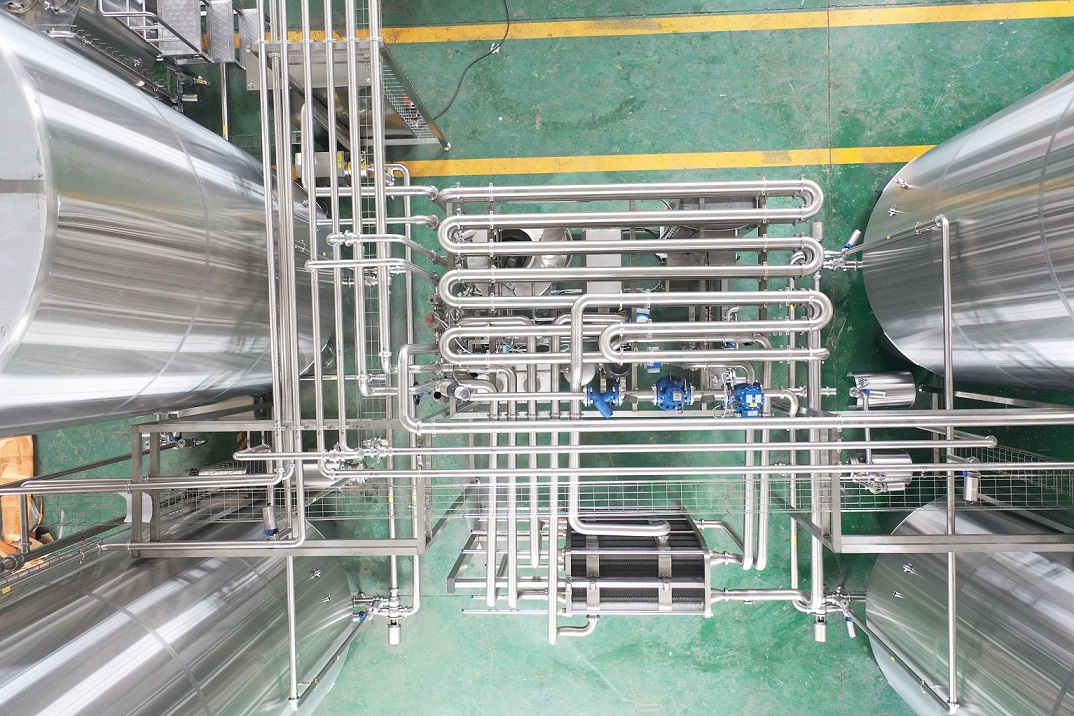

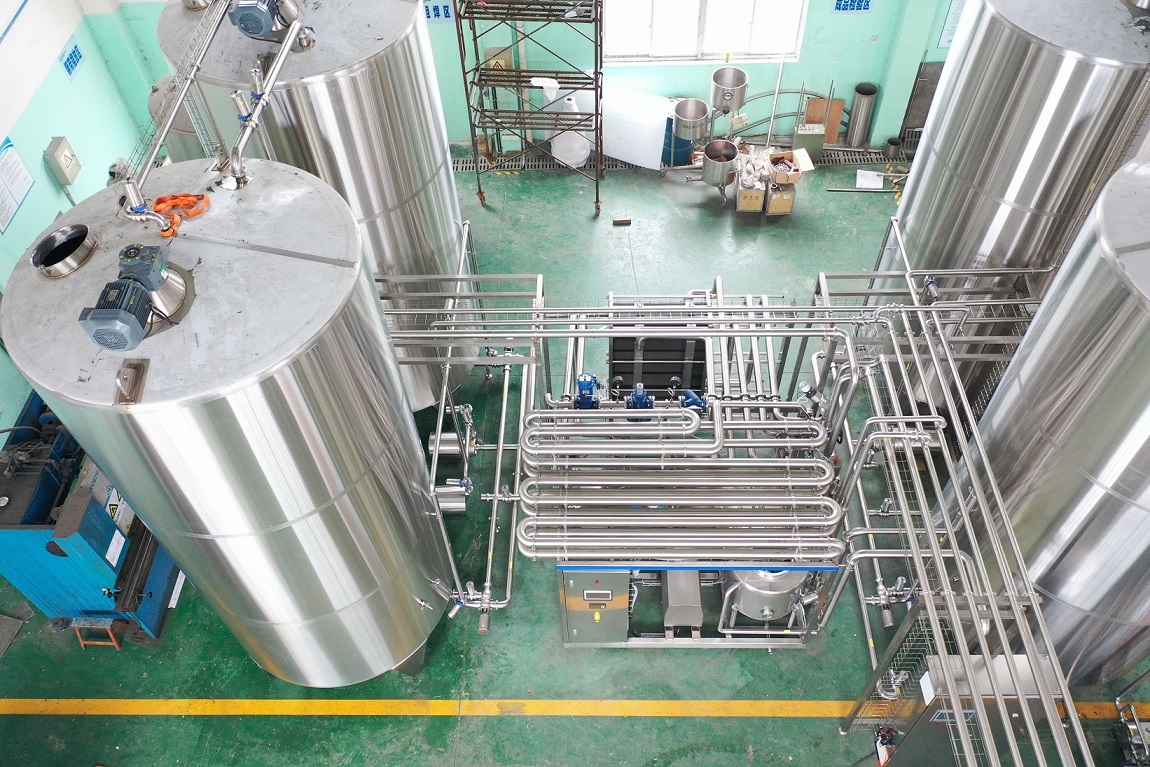

Full automatic pasteurizer

1.Full automatic running;

2.SS316L Plate type heat exchanger, three sections, heat recovery;

3.All the other parts which touch with product is made by SS304;

4.SIEMENS PLC+HMI;

5.Inlet temperature:70F;

6.Pasteurization temperature:185F;

7.Holding time: 30Seconds;

8.Output temperature:80F;

1

Glycol chiller

1.Air-cooled type;

2.Glycol:R407/410A;

1

Insulated glycol tank

SS304,PU insulation;

Insulation thickness:50mm, internal tank: 3mm,cladding tank 2mm;

Store and chill the Glycol;

Work together with the chiller;

1

Glycol pump

SS304,lifting:36meters

1

5

Water

centrifugal pump

SS304,lifting 30meters.

1

6

Syrup PD pump

SS304,rotor type.

Used after the syrup tank

1

7

Syrup PD pump

SS304,rotor type.

Used after the liquefier tank

1

8

Beverage centrifugal pump

SS304,lifting 30meters.

Used before pasteurizer

1

9

Pipeline of batching  system

1.Full SS304 hard pipes;

2.Pneumatic automatic valves;

3.With all the associated flow meters, sensors, other  associated fittings for matching the automatic batching;

1set

10

Automatic CIP system in Skid with 3 tanks

1.PLC+HMI control panel with washing program;

2.Three 2000L insulation tanks: Alkali tank, Sanitizer tank, reclaim tank.

3.With plate heat exchanger to heat up liquid of each tank;

4. Automatic pneumatic butterfly valves;

5.Automatic dosing system of alkali and sanitizer;

6.Automatic steam control system with whole set of SPIRAX SARCO valves;

7.The washing of each section is full automatic; Washing recipe can be managed;

1

11

Full CIP pipeline

1.Full pipes and valves, fittings from CIP to batching system. Valves are pneumatic automatic valves, pipes are SUS304 hard pipes ;

2. PLC modules and associated program in control panel;

1set

12

Control system of batching system

1.Full automatic batching programs;

2.Recipe can be set and managed from HMI;

3.Siemens PLC and HMI;

4.Schneider electric parts;

5.Water-resisted SS304 box;

6. Includes signal wires and power wires, wire tray;

1set
